Evince Insight
Taste and odor whole-home filtration with a 20-inch polyphosphate filter. Sodium-free.
For homeowners
Luxury essentials built to perform.
Refined design and advanced technology for the home you care about.
Our EWP certified partners will test the water at your kitchen sink. Based on your water chemistry, they will make some recommendations.
Request my complimentary water analysis

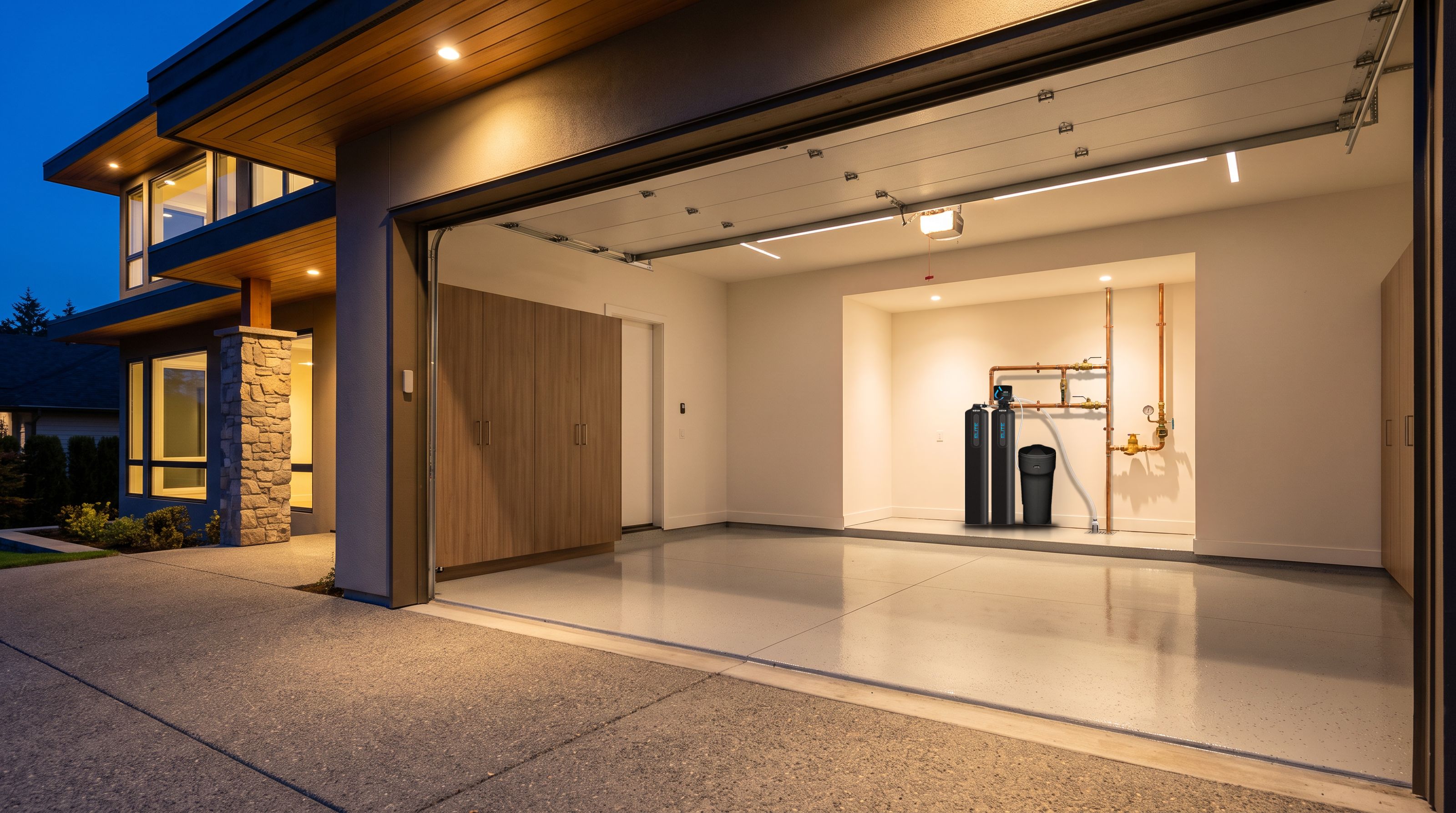

Conceptual illustration. Not a photograph of a customer installation.
Design
Performance that looks as good as it works.
Premium materials. Clean lines. Thoughtful engineering.
Whole-house systems
Taste and odor whole-home filtration with a 20-inch polyphosphate filter. Sodium-free.
Taste and odor whole-home filtration with a 20-inch polyphosphate filter. Sodium-free.
Dual-tank whole-home filtration and softening.
Single-tank filtration and softening.
Whole-home water softener.
Premium sodium-free whole-home filtration. 1.5 ft³ of 100% catalytic carbon and integrated KDF 55 media for advanced reduction of chlorine, chloramines, heavy metals and chlorinated gases, with a 20-inch polyphosphate filter for scale protection.
| Carbon | 1.5 ft³ 100% catalytic carbon |
|---|---|
| Gold Filter | KDF 55 media |
| Scale protection | 20-inch polyphosphate filter |
| Valve porting | 1 inch |
| Valve flow capability | Up to 27 GPM under specified conditions |
| Adapters | 1.25-inch adapters available |
| Service flow rate | 15.52 GPM |
| Media warranty | 15 years |
| Chlorine reduction | Media certified for 97% reduction up to 1,100,000 gallons with 1.5 ft³ minimum |
| Structural tank warranty | Lifetime |
| Valve and electronics warranty | 10 years, parts only |
| Certification | Certified by IAPMO R&T against NSF/ANSI 42, 372 and CSA B483.1 |
| Capacity | 1.2 million gallons |
| Reduces | Chlorine, chloramines, heavy metals, chlorinated gases |
| Average flow rate | 10–15 GPM |
| Peak flow rate | Up to 20 GPM |
| Connector | 1-inch MIP elbow adapters; optional 1.25-inch MIP adapters available separately |
Coverage is subject to the applicable written warranty. Full page
Whole-home catalytic carbon filtration for cleaner, better-tasting water from every tap. 1.5 ft³ of catalytic carbon and integrated KDF 55 media reduce chlorine, chloramines, heavy metals and chlorinated gases, with a 20-inch polyphosphate filter for scale protection. An in-and-out valve with no electronics keeps it simple.
| Scale protection | 20-inch polyphosphate filter |
|---|---|
| Valve porting | 1 inch |
| Valve flow capability | Up to 27 GPM under specified conditions |
| Adapters | 1.25-inch adapters available |
| Service flow rate | 15.52 GPM |
| Media warranty | 12 years |
| Chlorine reduction | Media certified for 97% reduction up to 1,100,000 gallons with 1.5 ft³ minimum |
| Structural tank warranty | Lifetime |
| Valve warranty | In-and-out valve, 10 years, parts only; no electronics |
| Carbon | 1.5 ft³ catalytic carbon |
| Gold Filter | KDF 55 media |
| Certification | Certified by IAPMO R&T against NSF/ANSI 42, 372 and CSA B483.1 |
| Capacity | 1.2 million gallons |
| Reduces | Chlorine, chloramines, heavy metals, chlorinated gases |
| Average flow rate | 10–15 GPM |
| Peak flow rate | Up to 20 GPM |
| Connector | 1-inch MIP elbow adapters; optional 1.25-inch MIP adapters available separately |
Coverage is subject to the applicable written warranty. Full page
A dedicated 10" × 54" carbon tank holds 1.5 ft³ of 100% catalytic carbon for chlorine and chloramine reduction. The integrated Gold Filter uses KDF 55 media on chlorinated gases and heavy metals. A second 10" × 54" tank holds 1.5 ft³ of 10% cross-link resin to reduce water hardness (calcium carbonate).
| Configuration | Dual tank, 10" × 54" each |
|---|---|
| Carbon | 1.5 ft³ 100% catalytic carbon |
| Resin | 1.5 ft³ 10% cross-link resin |
| Gold Filter | KDF 55 media |
| Valve porting | 1 inch |
| Valve flow capability | Up to 27 GPM under specified conditions |
| Adapters | 1.25-inch adapters available |
| Service flow rate | 15.52 GPM |
| Carbon tank media warranty | 15 years |
| Resin tank media warranty | 15 years |
| Chlorine reduction | Media certified for 97% reduction up to 1,100,000 gallons with 1.5 ft³ minimum |
| Structural tank warranty | Lifetime |
| Valve and electronics warranty | 10 years, parts only |
| Certification | Certified by IAPMO R&T against NSF/ANSI 44 and CSA B483.1 |
| Capacity | Eco 19,500 / Standard 28,500 / High Capacity 40,500 grains (10" × 54" tank; 4.5 / 9 / 18 lbs of salt per regeneration; Standard is the factory setting) |
| Reduces | Chlorine, chloramines, hardness minerals, heavy metals |
| Average flow rate | 10–15 GPM |
| Peak flow rate | Up to 20 GPM |
| Connector | 1-inch MIP elbow adapters; optional 1.25-inch MIP adapters available separately |
Coverage is subject to the applicable written warranty. Full page
One 10" × 54" tank combines 0.5 ft³ of 100% catalytic carbon with the integrated Gold Filter (KDF 55 media) and 1.0 ft³ of 10% cross-link resin to reduce water hardness (calcium carbonate).
| Configuration | Single tank, 10" × 54" |
|---|---|
| Carbon | 0.5 ft³ 100% catalytic carbon |
| Resin | 1.0 ft³ 10% cross-link resin |
| Gold Filter | KDF 55 media |
| Valve porting | 1 inch |
| Valve flow capability | Up to 27 GPM under specified conditions |
| Adapters | 1.25-inch adapters available |
| Service flow rate | 15.52 GPM |
| Media warranty | 10 years |
| Structural tank warranty | Lifetime |
| Valve and electronics warranty | 10 years, parts only |
| Certification | Certified by IAPMO R&T to NSF/ANSI 42, 44 and CSA B483.1 |
| Capacity | Eco 13,000 / Standard 19,000 / High Capacity 27,000 grains (10" × 54" tank; 4.5 / 9 / 18 lbs of salt per regeneration; Standard is the factory setting) |
| Typical media life | 8 to 12 years, depending on chlorine and chromium levels in the water |
| Reduces | Chlorine, chloramines, hardness minerals, heavy metals |
| Average flow rate | 10–15 GPM |
| Peak flow rate | Up to 20 GPM |
| Connector | 1-inch MIP elbow adapters; optional 1.25-inch MIP adapters available separately |
Coverage is subject to the applicable written warranty. Full page
Advanced whole-home water softening system engineered for dependable performance, intelligent regeneration control and continuous soft water delivery throughout the home. Media is covered for 2 years, and for up to 15 years when at least 1.5 ft³ of carbon pretreatment is installed ahead of True.
| Valve porting | 1 inch |
|---|---|
| Valve flow capability | Up to 27 GPM under specified conditions |
| Adapters | 1.25-inch adapters available |
| Service flow rate | 15.52 GPM |
| Media warranty | 2 years standard; up to 15 years with at least 1.5 ft³ of carbon pretreatment installed before True |
| Structural tank warranty | Lifetime |
| Valve and electronics warranty | 10 years, parts only |
| Capacity | Eco 22,500 / Standard 37,500 / High Capacity 45,000 grains (10" × 54" tank; 4.5 / 9 / 18 lbs of salt per regeneration; Standard is the factory setting) |
| Reduces | Hardness minerals and scale buildup |
| Average flow rate | 10–15 GPM |
| Peak flow rate | Up to 20 GPM |
| Connector | 1-inch MIP elbow adapters; optional 1.25-inch MIP adapters available separately |
Coverage is subject to the applicable written warranty. Full page
Drinking water
Tankless reverse osmosis drinking water.
Compact 5-stage reverse osmosis.
Continuous, high-flow reverse osmosis without a storage tank. Four stages of filtration with quick-change filters, including a 3-in-1 composite sediment, pre-carbon and post-carbon filter, and an 800 GPD RO membrane. Produces three gallons of purified water for every one gallon of wastewater.
| Membrane | 800 GPD RO |
|---|---|
| Flow rate | 0.62 GPM |
| Stages | 4, including 3-in-1 composite filter |
| Pure to waste | 3 : 1 |
| Warranty | 2-year limited, parts only |
| Operating pressure | A pressure regulator is required above 65 PSI |
| Water temperature | 41°F–110°F, cold water only |
| Power supply | DC 24V / 5A |
| Membrane life | Replace every 24 to 36 months, or when the indicator light comes on |
| Connections | 3/8-inch inlet and faucet |
| Testing | NSF/ANSI 58 tested for drinking water contaminant reduction performance |
| Reduces | Arsenic (As V), lead, fluoride, chromium, cadmium, copper, barium, selenium, radium, turbidity, and total dissolved solids (TDS) |
Coverage is subject to the applicable written warranty. Full page
Five stages in one compact manifold: sediment filter, dual high-capacity GAC pre-carbon filters, a 50 GPD RO membrane and a high-density T33 GAC post-carbon filter. Produces one gallon of purified water for every two gallons of wastewater, and shuts off automatically when the reservoir is full.
| Membrane | 50 GPD RO |
|---|---|
| Stages | 5 |
| Storage | 4-gallon tank |
| Warranty | 2-year limited, parts only |
| Operating pressure | 50–80 PSI |
| Water temperature | 40°F–100°F |
| Total dissolved solids | Under 1,000 ppm |
| Hardness | Up to 120 ppm (7 gpg) |
| pH range | 3–11 |
| Iron | Up to 0.3 ppm |
| Pure to waste | 1 : 2 |
| Average flow rate | Up to 50 gallons per day |
| Power supply | Non-electric operation |
| Connections | 1/4-inch and 3/8-inch tubing |
Coverage is subject to the applicable written warranty. Full page
The smart valve
At the heart of every system is the Evince smart valve: high-flow, with intelligent regeneration control and precision brining on applicable systems.
Backed by a lifetime structural tank warranty and a 10-year valve warranty (parts only). Media coverage of 10, 12 or 15 years by model; True is 2 years, up to 15 with carbon pretreatment.
Recommended by professionals
Evince is made for professional installation and sold through plumbing wholesalers. Your plumber knows your home. Evince is the system they trust.
Start here
Our EWP certified partners will test the water at your kitchen sink. Based on your water chemistry, they will make some recommendations. Water varies by location, source and plumbing, and the first step is understanding yours. No obligation.
